Configuring Node Exporter for Your Server

In this article, we will show you how to configure Node Exporter for your server.

Node Exporter: Prometheus exporter for hardware and OS metrics exposed by *NIX kernels, written in Go with pluggable metric collectors.

1. Installing and running the Node Exporter in your server

In Linux Server

Node IP: x.x.x.x

  1. Download the node exporter file from the Prometheus downloads page.


  2. Extract the file

    tar xf node_exporter-1.1.2.linux-amd64.tar.gz

  3. Run the file

    /root/node_exporter-1.1.2.linux-amd64/node_exporter &

  4. Check if the service is running

    Check if the service is running by issuing the command

    lsof -i:9100

  5. Verify Node Exporter metrics

    Once the Node Exporter is installed and running, you can verify that metrics are being exported by cURLing the /metrics endpoint:

    curl localhost:9100/metrics

In Windows

Please refer to

2. Add node_exporter to the Prometheus Server

Locate the target deployment

Log in to the Control Panel and locate your target deployment on the Home page or the My Applications page.

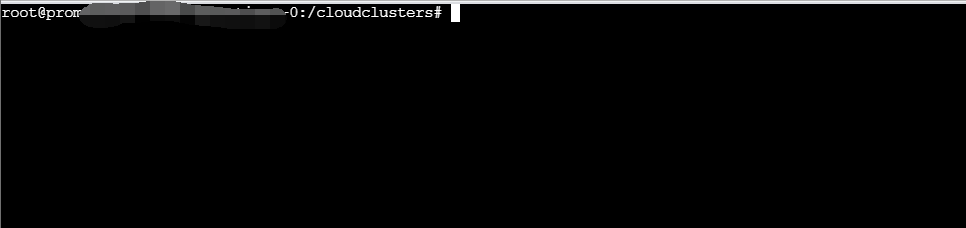

Launch a shell session

Click the Manage > Shell / SSH tab button to go to the Shell / SSH page.

Click the “Connect” icon to reboot the service launch a shell session.

Configure Prometheus

Edit prometheus.yml, the configuration file, to add a new job in the scrape_config section.

As the above screenshot shows, the configuration file is located in /cloudclusters/prometheus/conf/. Use the command below to go to the editing interface.

vi /cloudclusters/prometheus/conf/prometheus.yml

followed by adding the job with the command below.

- job_name: '<your job name>'
    - targets: ["node ip:9100"]

<your job name> : replace it with your job name.

Restart service

The supervisorctl reload command will restart the prometheus service.

3. Visualize Your Data

Now Prometheus is scraping metrics from a running Node Exporter instance, you can explore those metrics using the Prometheus UI.

Go to the Site & SSL page and click the Prometheus url. Then, enter the user and the password provided on the Site & SSL page.

You are able to start visualize your data in graphs.
